TOP END PISTON KIT VERTEX 53.96MM TWIN RING HUSQVARNA TC125 TE125 KTM 125 EXC 125 SX
Description
Vertex pistons are manufactured in Italy and are the premier brand of replacement pistons around the world. Their pistons are trusted by OEMs such as KTM, Husqvarna, Beta, and Gas Gas. Vertex collaborates with factory race teams on piston design, which allows them to build on their outstanding dedication to quality while continuing to bring products to market at an affordable price.

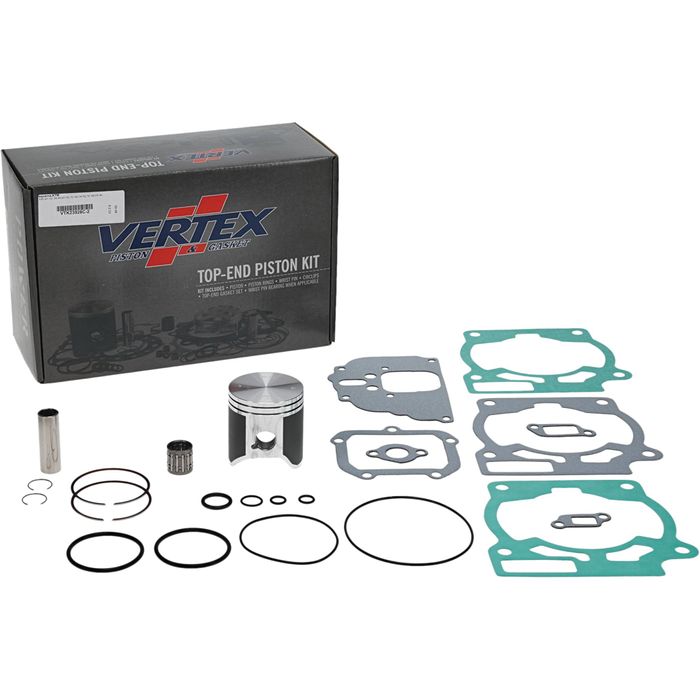

Vertex piston kits inc the piston, rings, wrist pin and circlips. The pistons are heat-treated with a T-6 hardening and tempering cycle. Also, a molybdenum disulphide skirt coating is used for reducing wear and improving the break-in of each piston.
Forged Pistons for 4 Stroke
Four-stroke engines have much higher cylinder pressures when compared to two-strokes and are generally manufactured from forgings. To handle the internal pressures of a four-stroke engine, Vertex's four-stroke pistons are forged from the highest quality 2618 aluminum alloy for superior strength and durability. Vertex uses unique piston profiles and compression ratios, offered in A, B, C and D sizes, to maximize power and performance while reducing blow-by and oil consumption.
Cast Piston for 2 Stroke
Because of a cast pistons ability to contain higher silicon content compared to forged pistons, and because two strokes have lower cylinder pressures when compared to four-strokes, cast pistons are ideal for two-stroke engines. Vertex pistons are gravity cast from an aluminum alloy with
18% silicon content. Silicon is important because:
- It decreases thermal expansion, which changes the geometry after the piston reaches operating temperature. With low thermal expansion characteristics, Vertex pistons can be run at tighter tolerances compared with forged pistons. This creates better power and performance, also making them less susceptible to rattling or breaking.
- Silicon gives the pistons better wear characteristics and prolongs piston life by decreasing wear on the piston skirt.
- HUSQVARNA TC125 2014
- HUSQVARNA TC125 2015
- HUSQVARNA TE125 2014
- HUSQVARNA TE125 2015
- HUSQVARNA TE125 2016
- KTM 125 EXC 2007
- KTM 125 EXC 2008
- KTM 125 EXC 2009
- KTM 125 EXC 2010
- KTM 125 EXC 2011
- KTM 125 EXC 2012
- KTM 125 EXC 2013
- KTM 125 EXC 2014
- KTM 125 EXC 2015
- KTM 125 EXC 2016
- KTM 125 SX 2007
- KTM 125 SX 2008
- KTM 125 SX 2009
- KTM 125 SX 2010
- KTM 125 SX 2011
- KTM 125 SX 2012
- KTM 125 SX 2013
- KTM 125 SX 2014
- KTM 125 SX 2015
